Concealed Sensor WC Flush Kits
2019-03-01 11:40:55
83
Feature
?304 stainless steel plate, anti-collision and anti-theft.
?Self developed solenoid valve with water-flow adjustment and filter net. Life time ≥ 500,000 circles.
?It's easy for disassembly and assembly in the process of water pressure testing with original easy-install protection cover.
?Remote controlled sensor with electricity protective function data will not be lost if power failure.
?Low power consumption less than 30uA.
?Anti-reversed connection DC waterproof connectors with waterproof rate Ip65.
Technical Parameters
?Power supply:DC6V/AC220V 50Hz
Standby power:≤30uA
Water pressure:0.3~0.8Mpa
Sensor distance:70±5cm
Life time:500,000 circles
Inlet and outlet size:DN15(G1/2")
Working temperature:0~55°

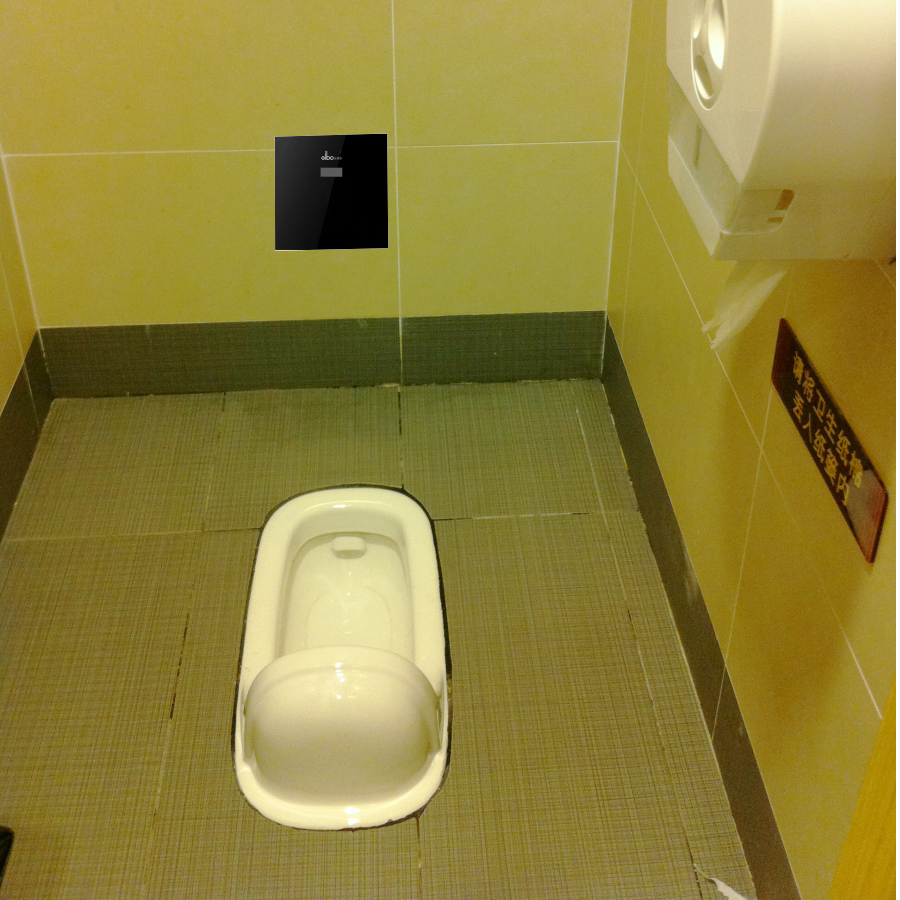

Application Example

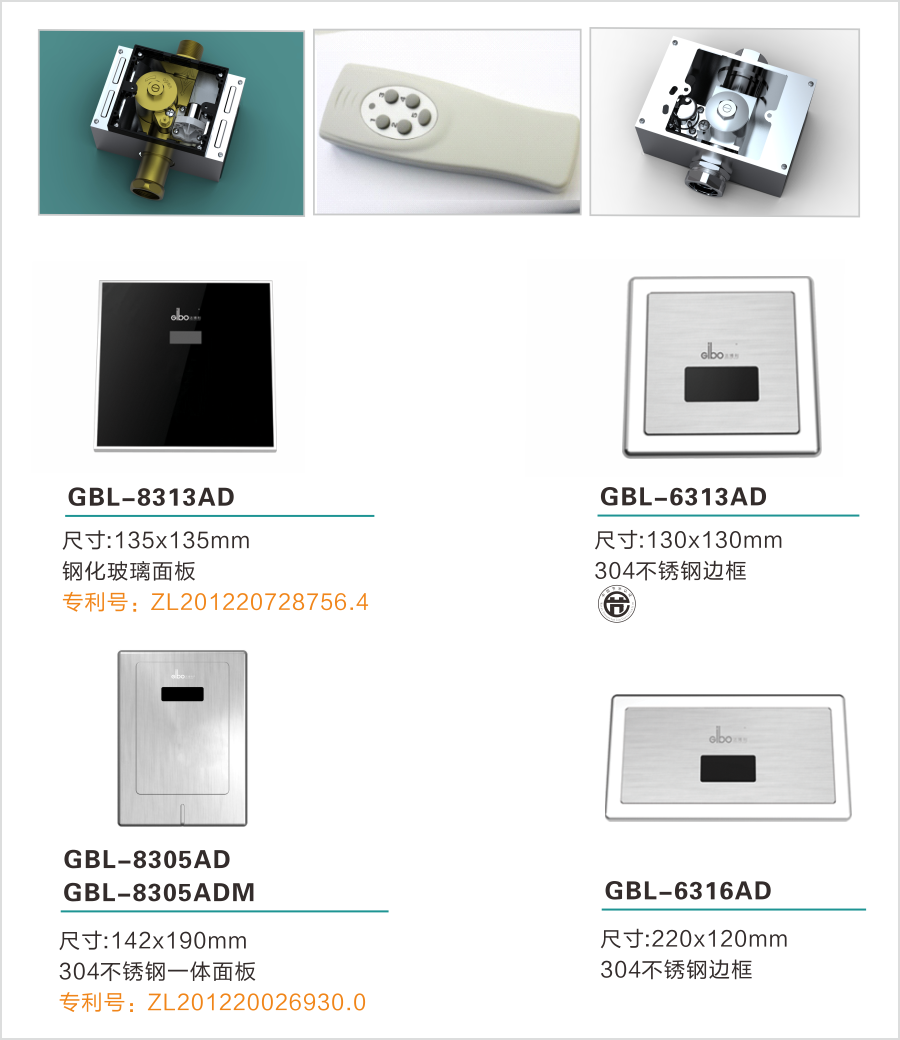

Spare Parts
