Feature

?304 stainless steel plate, anti-collision and anti-theft.

?Self developed solenoid valve with water-flow adjustment and filter net. Life time ≥ 500,000 circles.

?It’s easy for disassembly and assembly in the process of water pressure testing with original easy-install protection cover.

?Remote controlled sensor with electricity protective function data will not be lost if power failure.

?Low power consumption less than 30uA.

?Anti-reversed connection DC waterproof connectors with

?waterproof rate Ip65.

Technical Parameters

?Power supply:DC6V/AC220V 50Hz

 Standby power:≤30uA

 Water pressure:0.05~0.7Mpa

 Sensor distance:70±5cm

 Life time:500,000 circles

 Inlet and outlet size:DN15(G1/2")

 Working temperature:0~55°

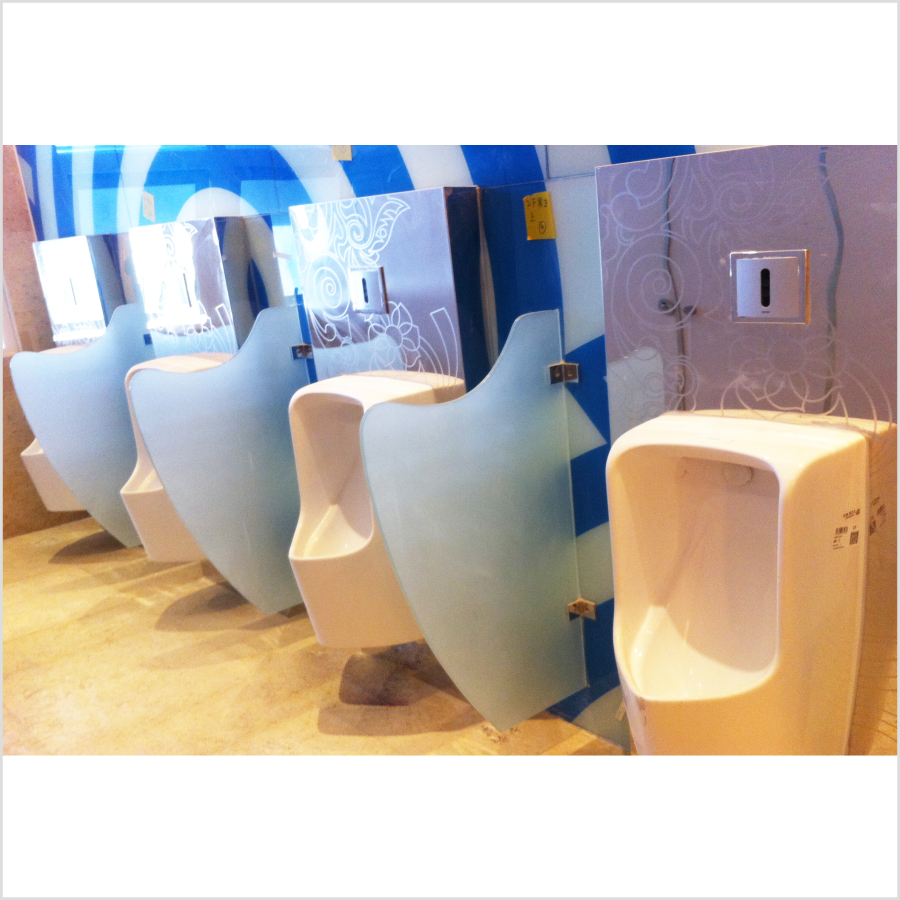

Application Example

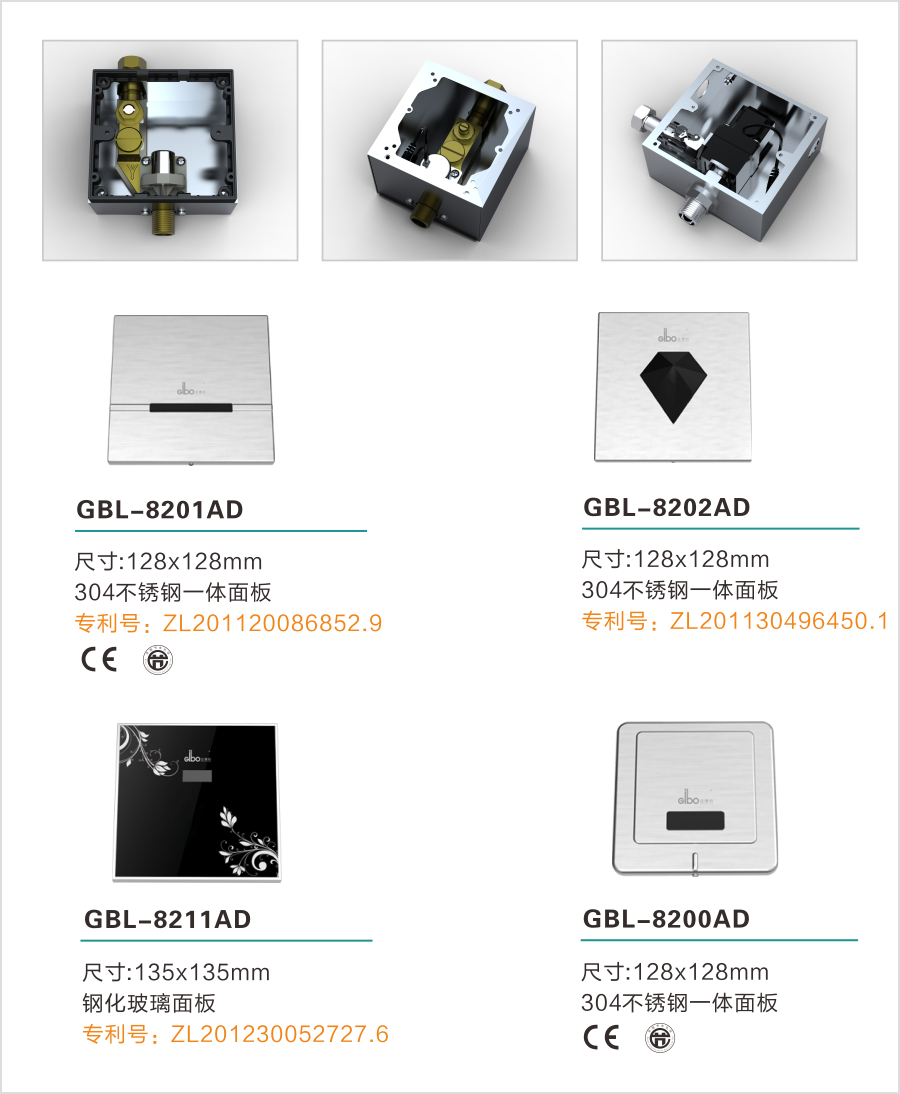

Spare Parts
